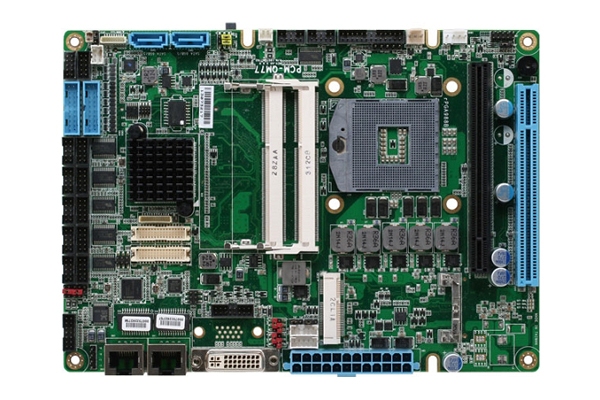

RBT PCM-QM77

Description

»Intel® 3rd Generation Core™ i Series + QM77/HM76

»204-pin SODIMM DDR3/L 1333/1600 MHz x 2, Up to 16 GB

»Intel® 82579LM x 1/ Intel® 82583V x 1, 10/100/1000Base-TX Ethernet, RJ-45 x 2

»Up to 24-bit Dual-Channel LVDS x 2, CRT, DVI

»2CH HD Audio

»SATA 6.0 Gb/s x 2, mSATA x 1, CFast™ x 1

»USB 3.0 x 4, USB2.0 x 4, COM x 10, 16-bit Digital I/O

»Mini-Card x 1, Touch (Optional), TPM, PCI, PCI-E[x16], SIM Card,LPT

»AT/ATX Power Input (Default ATX)

»Supports iAMT8.0 and RAID 0,1 for QM77 Chipset

SPEC ITEM	DESCRIPTION
System
Form Factor	5.25” Compact Board
CPU	Intel® Core™ i7/i5/i3/Celeron® IVY bridge and Sandy Bridge (Socket-G2 based)
CPU Frequency	Up to 2.5 GHz
Chipset	Intel® QM77/HM76
Memory Type	DDR3 1066/1333/1600, SODIMM x 2 up to 16G
Max. Memory Capacity	8 GB
BIOS	UEFI
Wake on LAN	Yes
Watchdog Timer	255 Levels
Power Requirement	ATX
Power Supply Type	ATX
Power Consumption (Typical)	—
Dimension (L x W)	8″ x 5.75″ (203mm x 146mm)
Operating Temperature	32°F ~ 140°F (0°C ~ 60°C)
Storage Temperature	-40°F ~ 176°F (-40°C ~ 80°C)
Operating Humidity	0% ~ 90% relative humidity, non-condensing
MTBF (hours)	60000
Certification	CE/FCC
Display
VGA/LCD Controller	Intel® Core™ i7/i5/i3 integrated
Video Output	CRT, LVDS LCD, DVI-I
Backlight inverter supply	Max. 12V
I/O
Ethernet	Intel® 82579LM x 1, Intel® 82583V x 1, 10/100/1000Base-TX need Pin header for LAN
Audio	Realtek ALC892, 2.1CH
USB Port	USB3.0 x 4, USB 2.0 x 4
Serial Port	RS-232 x 8, RS-232/422/485 x 2
Parallel Port	SPP/EPP/ECP x 1 or FDD Function
HDD Interface	SATA 3.0 x 2, SATA 2.0 x 2
FDD Interface	—
SSD	CFast,mSATA
Expansion Slot	PCI-Express [x16], Mini-Card or mSATA, PCI, Mini PCI Digital I/O ( 8 in/8 out)
Expansion Slot	iAMT 8.0 support 5V/12V Voltage output
PWM LCD Support	—
DIO	16-bit
TPM	Optional
Touch	Optional
