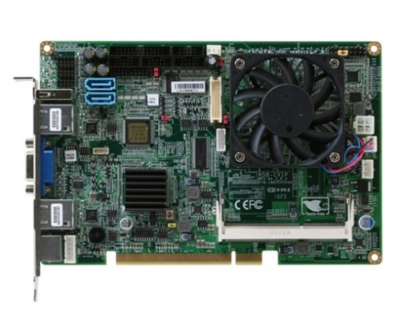

RBT HSB-800I

»RBT HSB-800I,ISA Half-Size SBC with AMD Geode™ LX800 Processor

»AMD Geode™ LX800 Processor

»AMD Geode™ LX800 + CS5536

»Onboard DDR 400 MHz, Up to 128 MB

»10/100Base-TX Ethernet x 1 or Gigabit Ethernet x 1 (Optional)

»Integrated 2D Graphics Accelerator, VGA Support, CRT, TFT/ LVDS Support

»AC97 Codec Audio

»Ultra ATA33 x 1, CompactFlash™ Type 2 x 1

»USB2.0 x 4, COM x 4, Parallel x 1, IrDA x 1, Digital I/O

»+5V, +12V Operation, AT Power

Description

SPEC ITEM	DESCRIPTION
System
Form Factor	Half-size CPU Card
Bus Interface	ISA
CPU	Onboard AMD Geode™ LX800
Memory Type	Onboard 128 MB (DDR 400)
Chipset	AMD Geode™ LX800 + CS 5536
BIOS	Award
Wake on LAN	No
Watchdog Timer	255 Levels
Power Requirement	ATX 2.1
Power Consumption (Typical)	AMD LX800, DDR400 128MB 0.19A@+12V, 1.51A@+5V, 9.83W
Power Supply Type	+5V, +12V operation
Dimension (L x W)	7.3″ x 4.8″ (185mm x 122mm)
Operating Temperature	32°F ~ 140°F (0°C ~ 60°C)
Storage Temperature	-40°F ~ 176°F (-40°C ~ 80°C)
Operating Humidity	0% ~ 90% relative humidity, non-condensing
MTBF (hours)	85000
Display
VGA/LCD Controller	AMD Geode™ LX800
Video Output	1600 x 1200@32bpp at 100 MHz for CRT 1600 x 1200@24bpp for LCD
Backlight inverter supply	5V/12V
I/O
Ethernet	10/100 or 10/100/1000Base-TX (optional)
Audio	Yes
USB Port	USB2.0 x 4
Serial Port	RS-232 x 3
Serial Port	RS-232/422/485 x 1
Parallel Port	1
HDD Interface	IDE x 1
FDD Interface	1
SSD	CompactFlash™
Expansion Slot	ISA, PC/104
DIO	8-bit Programmable (4-in/4-out)
TPM	—
