»Intel® Core™ i7/i5/i3/Celeron® Processor SoC
»DDR4 1866/2133, SODIMM x 1
»DVI, DP, 18/24-bit Dual-Channel LVDS
»2 CH Audio
»SATA 6.0 Gb/s x 1 & mSATA (Shared with Half-size Mini-Card and Selected by BIOS)
»Supports 8-bit Digital I/O, USB 2.0 x 2 , USB 3.0 x 4
»COM x 4 (RS-232 x 1, RS-232/422/485 x 3)
»Mini-Card Slot x 1 (Full size), TPM (Optional), SIM
»Wide DC Support 9~36V, +12V Only (Optional)
»4/5/8-wire Resistive Touch Screen Controlle
| SPEC ITEM | DESCRIPTION |
| System | |

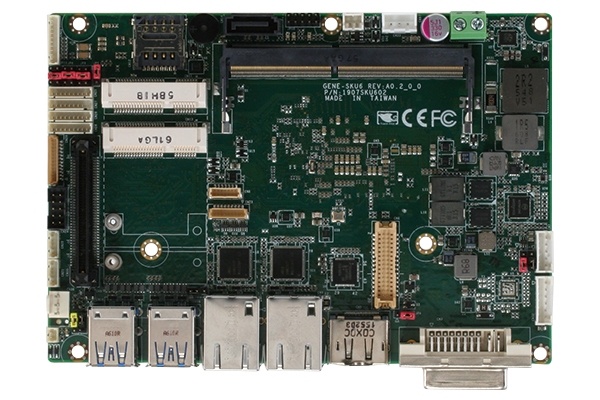

| Form Factor | 3.5” SubCompact Board |
| CPU | 6th Generation Intel® Core™ i7-6600U/i5-6300U Processor SoC |
| CPU Frequency | Up to 3.0GHz |
| Chipset | 6th Generation Intel® Core™ i7-6600U/i5-6300U Processor SoC |
| Memory Type | DDR4 1866/2133, SODIMM x1 |
| Max. Memory Capacity | Up to 16 GB |
| BIOS | UEFI |
| Wake on LAN | Yes |
| Watchdog Timer | 255 Levels |
| Power Requirement | +9~36V or +12V |
| Power Supply Type | AT/ ATX |
| Power Consumption (Typical) | Intel® i7-6600U, DDR4 2133MHz 16GB, 1.75A@ +12V |
| Dimension (L x W) | 5.75″ x 4″ (146mm x 101.7mm) |
| Operating Temperature | 32°F ~ 140°F (0°C ~ 60°C) |
| Storage Temperature | -40°F ~ 176°F (-40°C ~ 81°C) |
| Operating Humidity | 0% ~ 90% relative humidity, non-condensing |
| MTBF (hours) | 123,000 |
| Certification | CE/FCC |
| Display | |
| VGA/LCD Controller | 6th Generation Intel® Core™ Processor SoC |
| Video Output | DVI, DP, LVDS (CRT is shared wih DP, and default is DP) |
| Backlight inverter supply | Yes |
| I/O | |
| Ethernet | Intel® i210/i211, 10/100/1000Base-TX, RJ-45 x 2 (Support EtherCAT) |
| Audio | High Definition Audio Interface |
| USB Port | USB 3.0 x 4 |
| USB 2.0 x 2 | |
| Serial Port | RS-232 x 1 , RS-232/422/485 x 3 |
| Parallel Port | — |
| HDD Interface | SATA 3.0 x 1 |
| +5V SATA power connector x 1 | |
| FDD Interface | — |
| SSD | mSATA (Shared with Half-size Mini-Card and Selected by BIOS) |
| Expansion Slot | BIO x 1 |
| Mini-Card x 2 and default is mSATA x 1 (Half-size), Mini-Card x 1 (Full-size) | |
| DIO | 8-bit |
| SIM | x 1 |
| TPM | TPM2.0 x 1 (optional) |
| Touch | x 1 |
