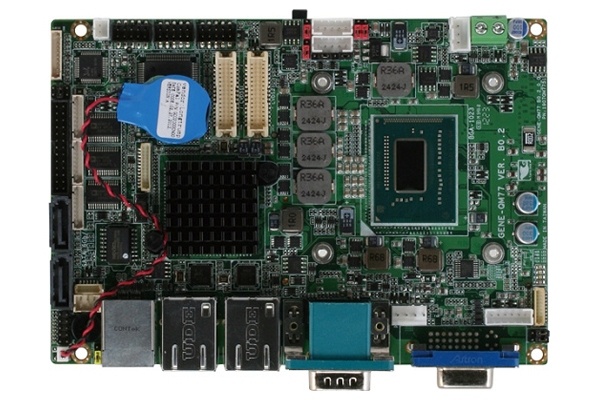

Onboard Intel® Core™ i7-3555LE/ Celeron® 847E Processor
Intel® QM77/HM76
»DDR3 1333/1600 MHz SODIMM x 1, Up to 8 GB
»Gigabit Ethernet x 2, RJ-45 x 2
»CRT or DVI (Optional), 18/24-bit Dual-Channel LVDS LCD x 2, HDMI
»2CH HD Audio
»SATA 6.0 Gb/s x 2 (RAID by BIOS), CFast™ x 1
»USB 3.0 x 2, USB2.0 x 6, COM x 4, 8-bit Digital I/O
»Mini-Card x 1
»+12V Only Operation
»Supports iAMT with Intel® QM77
»Onboard 4/5/8-wire Resistive Touch Screen Controller
»mSATA x 1 (Optional, Sharded Mini-Card Interface)
»IEEE 1588 Compatible
| SPEC ITEM | DESCRIPTION |
| System | |
| Form Factor | 3.5” SubCompact Board |
| CPU | Intel® Core™ i7/i3/Celeron® (BGA based,17W) |
| CPU Frequency | Up to 1.8 GHz |
| Chipset | Intel® PCH QM77/HM76 |
| Memory Type | DDR3 1066/1333/1600, SODIMM x 1 |
| Max. Memory Capacity | 8 GB |
| BIOS | SPI type |
| Wake on LAN | Yes |
| Watchdog Timer | 255 Levels |
| Power Requirement | +12V |
| Power Supply Type | AT/ ATX |
| Power Consumption (Typical) | Intel® Core™ i7-3555LE 2.5 GHz, DDR3 1333 8 GB 2.49A@+12V |
| Dimension (L x W) | 5.75″ x 4″(146mm x 101.6mm) |
| Operating Temperature | 32°F ~ 140°F (0°C ~ 60°C) |
| Storage Temperature | -40°F ~ 176°F (-40°C ~ 80°C) |
| Operating Humidity | 0% ~ 90% relative humidity, non-condensing |
| MTBF (hours) | 50,000 |
| Certification | CE/FCC |
| Display | |
| VGA/LCD Controller | Intel® Core™ i7/i3/Celeron®integrated |
| Video Output | CRT+LVDS, CRT+DVI, CRT+HDMI, LVDS+DVI, LVDS+HDMI, DVI+HDMI, LVDS+LVDS |
| Backlight inverter supply | Up to 24-bit dual-channel LVDS x 2 |
| I/O | |
| Ethernet | Intel® 82579LM , Realtek RTL-8111E, 10/100/1000Base |
| Audio | High Definition Audio Interface |
| USB Port | USB2.0 x 6 , USB 3.0 x 2 |
| Serial Port | RS-232 x 3 , RS-232/422/485 x 1 |
| Parallel Port | SPP/EPP/ECP x 1 (By BIOS setting) |
| HDD Interface | SATA3.0 x 2 |
| FDD Interface | — |
| SSD | CFast™ |
| mSATA (Shared with Mini-Card by BOM) | |
| Expansion Slot | Mini-Card x 1 |
| DIO | 8-bit |
| SIM | x 1 |
| TPM | x 1 |
| Touch | x 1 |
