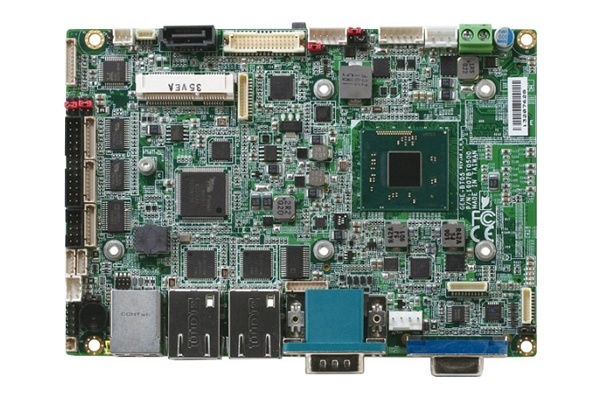

RBT GENE-BT05

Description

»Gigabit Ethernet x 2, RJ-45 x 2

»CRT, 18/24-bit Dual-Channel LVDS LCD, HDMI

»2CH HD Audio

»SATA 3.0 Gb/s x 1, CFast™ x 1

»USB 3.0 x 1, USB2.0 x 3, COM x 4, 8-bit Digital I/O

»Mini-Card x 2 (Full-size x 1, Half-size x 1)

»DC 12V, AT/ATX Mode

»Onboard 4/5/8-wire Resistive Touch Screen Controller (Optional)

»mSATA x 1 (Optional, Share Mini-Card Interface)

»Onboard Trusted Platform Module (Optional)

SPEC ITEM	DESCRIPTION
System
Form Factor	3.5” SubCompact Board
CPU	Intel® N2930/N2807/J1900/E3845/E3825
CPU Frequency	Up to 2.0GHz
Chipset	Intel® N2930/N2807/J1900/E3845/E3825
Memory Type	DDR3L 1066/1333, SODIMM x 1
Max. Memory Capacity	Up to 8G
BIOS	UEFI
Wake on LAN	Yes
Watchdog Timer	255 Levels
Power Requirement	+12V
Power Supply Type	AT/ATX
Power Consumption (Typical)	Intel® N2930, DDR3L 1600MHz 8G, 0.65A@+12V
Dimension (L x W)	5.75″ x 4″ (146mm x 101.6mm)
Operating Temperature	32°F ~ 140°F (0°C ~ 60°C) or WiTAS 2 (E3825)
Storage Temperature	-40°F ~ 176°F (-40°C ~ 80°C)
Operating Humidity	0% ~ 90% relative humidity, non-condensing
MTBF (hours)	111,000
Certification	CE/FCC
Display
VGA/LCD Controller	Intel® N2930/N2807/J1900/E3845/E3825
Video Output	CRT+LVDS, HDMI+LVDS , CRT+HDMI
Backlight inverter supply	Up to 24-bit dual-channel LVDS x 1
I/O
Ethernet	Intel® I211 (or 210), 10/100/1000Base-TX, RJ-45 x 2
Audio	High definition audio interface
USB Port	USB2.0 x 3 , USB 3.0 x 1
Serial Port	RS-232 x 2 , RS-232/422/485 x 2
Parallel Port	SPP/EPP/ECP x 1
HDD Interface	SATA 2.0 x 1
FDD Interface	—
SSD	CFast™ (alternative with mSATA by BOM and also occupy one Mini-Card location)
Expansion Slot	Mini-Card x 2(Full-size x 1, Half-size x 1)
DIO	8-bit
SIM	x 1
TPM	x 1
Touch	x 1
Touch	x 1 (USB interface)
TPM	TPM2.0 x 1 (optional)
Touch	x 1
