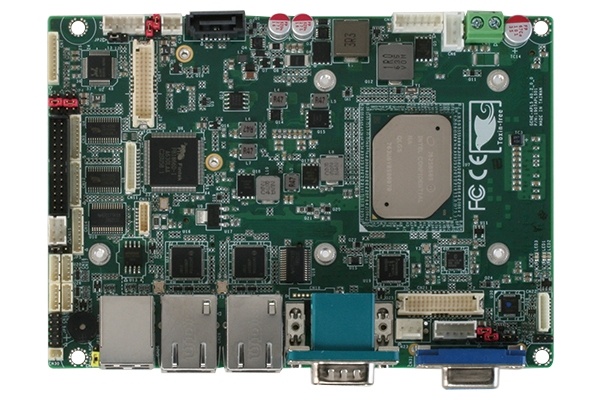

»Intel® Pentium® N4200/ Celeron® N3350 Processor SoC
»DDR3L 1866 MHz SODIMM x 1, up to 8 GB
»VGA/LVDS/LVDS2 (HDMI Co-layout with LVDS2 Optional)
»2 CH Audio, SATA 6.0 Gb/s x 1
»Supports 8-bit Digital I/O , USB 2.0 x 4 , USB 3.0 x 2 , COM x 4
»Mini Card x 1 (Half-size), mSATA x 1 (Full size)
»DC 12V Only or +9~19V (Optional), AT/ATX Mode
»Supports TPM (Optional)
»4/5/8-wire Resistive Touch Screen Controller (Optional
| SPEC ITEM | DESRIPTION |
| System | |
| Form Factor | 3.5” SubCompact Board |
| CPU | Intel® Pentium® N4200/ Celeorn® N3350 Processor SoC |
| CPU Frequency | Up to 2.5 GHz |
| Chipset | Intel® Pentium® N4200/ Celeron® N3350 Processor SoC |
| Memory Type | DDR3L 1866MHz, SODIMM x 1 |
| Max. Memory Capacity | Up to 8GB |
| BIOS | UEFI |
| Wake on LAN | Yes |
| Watchdog Timer | 255 Levels |
| Power Requirement | +12V OR +9~19V (optional) |
| Power Supply Type | AT/ ATX |
| Power Consumption (Typical) | Intel® N4200, DDR3L 1600MHz 8GB, 1.57A@ +12V |
| Dimension (L x W) | 5.75″ x 4″ (146mm x 101.7mm) |
| Operating Temperature | 32°F ~ 140°F (0°C ~ 60°C) |
| Storage Temperature | -40°F ~ 176°F (-40°C ~ 81°C) |
| Operating Humidity | 0% ~ 90% relative humidity, non-condensing |
| MTBF (hours) | 128,000 |
| Certification | CE/FCC |
| Display | |
| VGA/LCD Controller | Intel® Atom™ N4200/ N3350 Processor SoC integrate |
| Video Output | VGA/LVDS/ LVDS2 (co-layout with HDMI, optional) |
| Backlight inverter supply | Yes |
| I/O | |
| Ethernet | Intel® i210/I211, 10/100/1000Base-TX, RJ-45 x 2 |
| Audio | High Definition Audio Interface |
| USB Port | USB 3.0 x 2 |
| USB 2.0 x 4 | |
| Serial Port | RS-232 x 2 , RS-232/422/485 x 2 |
| Parallel Port | SPP/EPP/ECP x 1 (Option, Shared with DIO) |
| HDD Interface | SATA 3.0 x 1 |
| +5V SATA power connector x 1 | |
| FDD Interface | — |
| SSD | mSATA |
| Expansion Slot | mSATA x 1 (Full-size) MiniCard x 1 (Half-size) |
| DIO | 8-bit |
| SIM | x 1 (uSIM) (Optional) |
| TPM | TPM2.0 x 1 (Optional) |
| Touch | x 1 (Optional) |
| Touch | x 1 |
