You are here: Home / GSM ALARM CONTROLLER / Data Acquisition / I-7050 DC Digital I/O

I-7050 DC Digital I/O

  • 8 Digital Outputs and 7 Digital Inputs
  • Open Collector Output
  • Non-isolated for all Channels
  • Digital Input Channels Can Be Used As 16-bit Counters
  • Configurable Power-on Value Settings
  • Configurable Safe Value Settings
  • Dual Watchdog
  • Wide Operating Temperature Range: -25 ~ +75°C







Category: Data Acquisition
  • Description

Description

ModelI-7050
Communication
InterfaceRS-485
Bias ResistorNo (Usually supplied by the RS-485 Master. Alternatively, add a tM-SG4 or SG-785.)
Format(N, 8, 1) (N, 8, 2) (E, 8, 1) (O, 8, 1)
Baud Rate1200 ~ 115200 bps
ProtocolDCON (For I-7050 series)
Modbus RTU, DCON (For M-7050 series)
Dual WatchdogYes, Module (1.6 Seconds), Communication (Programmable)
LED Indicators/Display
System LED IndicatorYes, 1 LED as Power/Communication Indicator
EMS Protection
ESD (IEC 61000-4-2)–
EFT (IEC 61000-4-4)–
Surge (IEC 61000-4-5)–
Power
Reverse Polarity ProtectionYes
Input Range10 ~ 30 VDC
Consumption0.4 W
0.4 W
Mechanical
Dimensions (W x L x H)72 mm x 123 mm x 35 mm
InstallationDIN-Rail or Wall Mounting
Environment
Operating Temperature-25 ~ +75°C
Storage Temperature-40 ~ +85°C
Humidity10 ~ 95% RH, Non-condensing

Related products

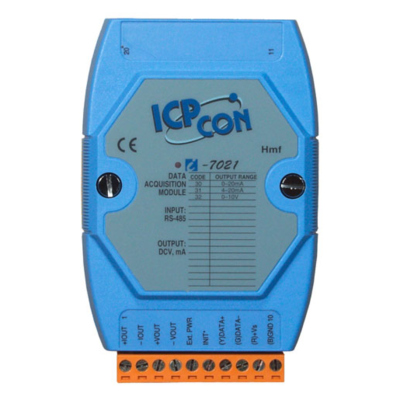

  • I-7021 Analog Output Module

    Read more Show Details
  • I-7561 CR

    Read more Show Details
  • Serial To USB Converter

    Read more Show Details

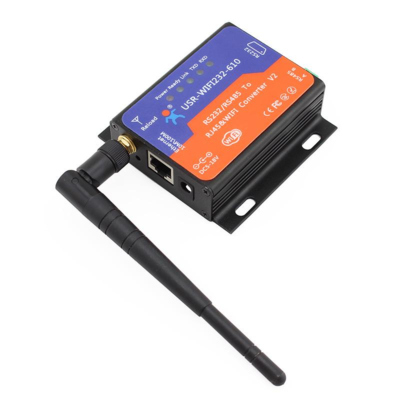

  • USR-WIFI232-610-V2 Serial to WIFI Converter Module
