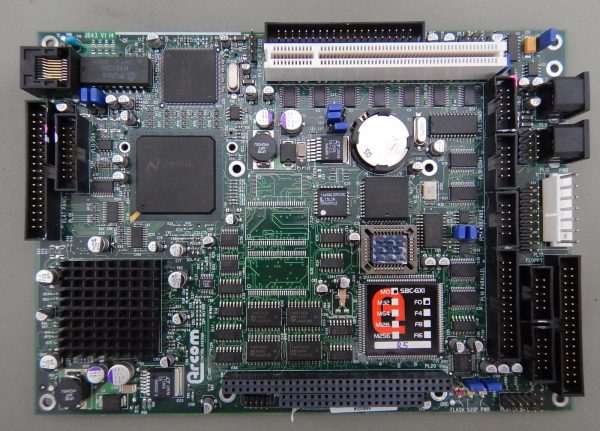

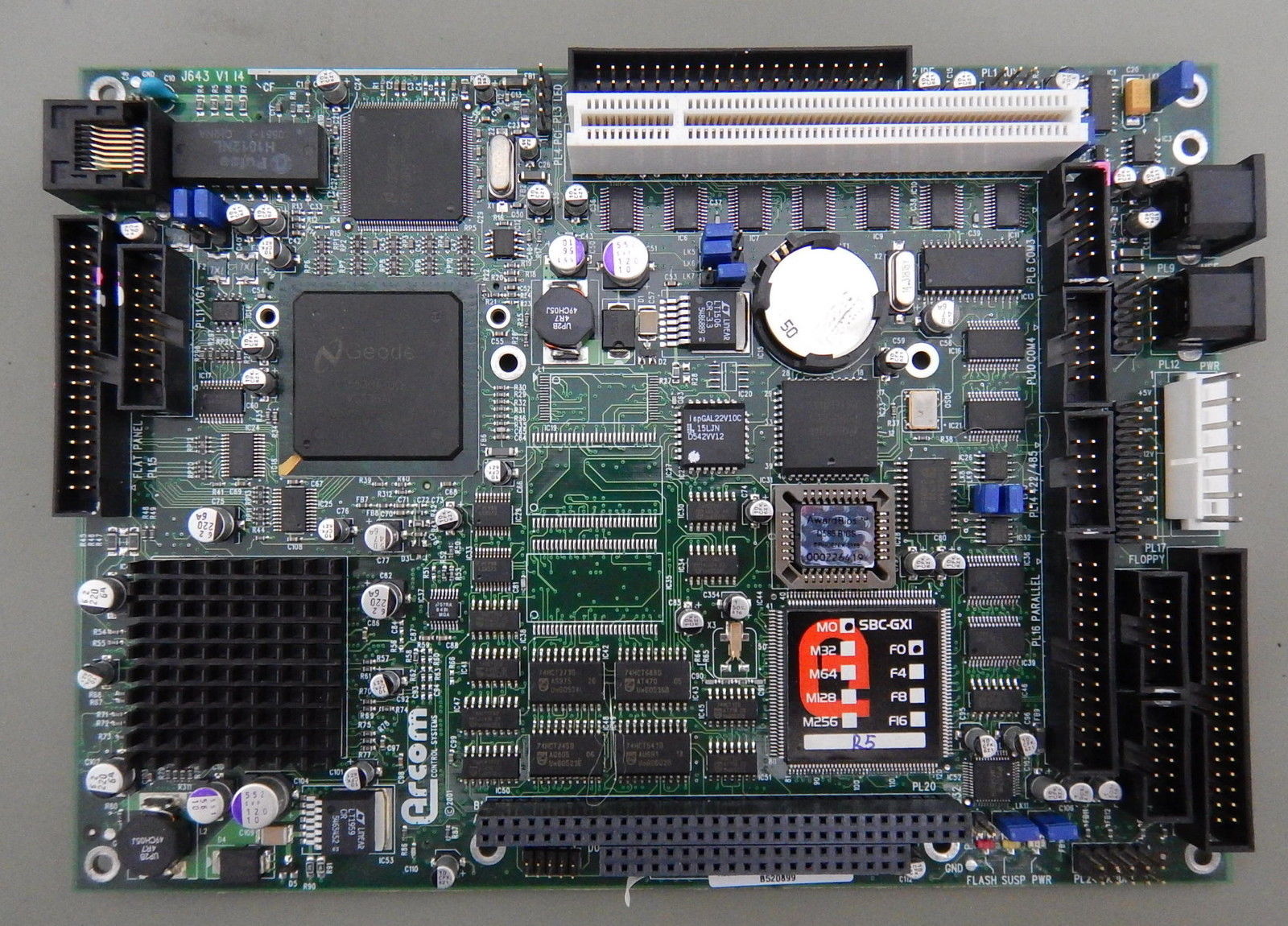

ARCOM-SBC-GX1

Description

»CRT/TFT Graphics controller (XVGA)-1280 x 1024,18-bit 3.3V/5V TFT panels,1.5 – 4Mbytes SDRAM Video Memory

»Expansion CompactFlash socket (Type I & II),PC/104 bus, PCI slot (5V)

»Extended temperature operation- -20 C to +60 C (-4 F to +140 F)

»FDD, HDD, Resident Flash, CompactFlash (on solder side)

»Four 16C550 compatible high speed UARTs-3 x RS-232, 1 x RS-232/422/485

»Hardware Watchdog timer(jumper selectable for 2 or 8 seconds)

»Industry standard EBX form factor

»LED indicators-Power/Suspend/Flash access

»National Semiconductor DP83815 10/100baseTx Ethernet via RJ-45

»Onboard temperature monitor

»PC peripherals Keyboard, mouse, LPT

»RoHS-5 compliant

»Two USB ports

»Two user links

»Up to 16Mbytes onboard Intel StrataFlash-Datalight FlashFX Flash media management

»Up to 256Mbytes 144-pin SODIMM socket (on solder side)

SPEC ITEM	DESCRIPTION
Board Type	EBX (5.25 in)
Dimensions	EBX compatible format 5.75″ x 8.00″ (146mm x 203mm)
Humidity	10% to 90% RH (non-condensing)
MTBF	90,000 hours
Power Requirement	+5V +/- 5% 1.5A (typical)
Processor	Geode GX1 300
Real Time Clock	Accuracy:+/- 1min/month @ 25 C (77 F)
Software	(boards supplied with onboard Flash memory) Datalight ROM-DOS operating system Datalight FlashFX Flash media management
Temperature	Operating -20 C to +60 C (-4 F to +140 F) Storage -40 C to +85 C (-40 F to +185 F)
Weight	270 grams
Form Factor	EBX
