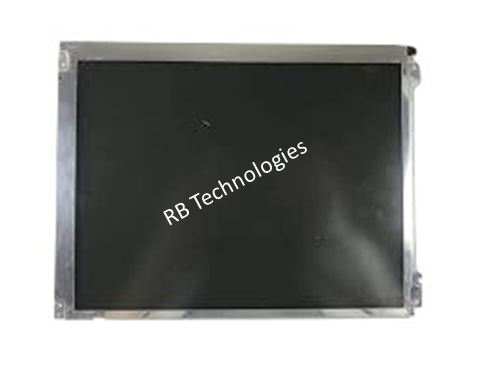

»AA121SK26is 12.1” color TFT-LCD (Thin Film Transistor Liquid Crystal Display) module composed

of LCD panel, driver ICs, control circuit, and backlight unit.

»By applying 6bit digital data,800×600,260

»K-color images are displayed on the12.1” diagonal screen.

»Input power voltage issingle 3.3Vor 5.0V for LCD driving.

»Both 3.3 V-CMOS and 5.0 V-

»CMOS level voltage are acceptable for logic input voltage

Description

SPEC ITEM	DESCRIPTION
Brand	Mitsubishi
Model	AA121K26
Diagonal Size	12.1 inch
Type	Si TFT-LCD, LCM
Pixel Format	800(RGB)×600 [SVGA]
Configuration	RGB Vertical Stripe
Active Area	246(H)×184.5(V) mm
Outline Dim.	280(H)×210(V) ×12.5(D) mm
Bezel Area	249.0(H)×187.5(V) mm
Luminance	300 cd/m² (Typ.)
Contrast Ratio	300:1 (Typ.) (TM)
View Direction	6 o’clock
Response Time	20/30 (Typ.)(Tr/Td)
Viewing Angle	60/60/40/50 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	262K
Light Source	CCFL [2 pcs] , 50K hours , W/O Driver
Weight	740g (Typ.)
Touch Panel	Without
Interface Type	41 pins CMOS (1 ch, 6-bit) , Connector
Power Supply	3.3/5.0V (Typ.)(VCC)
Environment	Operating Temperature: 0 ~ 50 °C
Environment	Storage Temperature: -20 ~ 60 °C
